Overview
RC-1120 is wireless industrial remote control application for Automatic fire fighting monitors. It’s comprehensive functionality and great ease of use make it a highly cost–efficient solution for virtually any remote foam / water monitor application. This remote control can be controlled up to 4No. MC-1120
Benefit:
- SMART Radio Communication
It helps operator monitor the radio signal status with this new RF technology.
- Auto Channel Selection (ACS)
This feature creates a near non-interference from other systems
Water/Dirt Resistant
Robust casing for all weather conditio

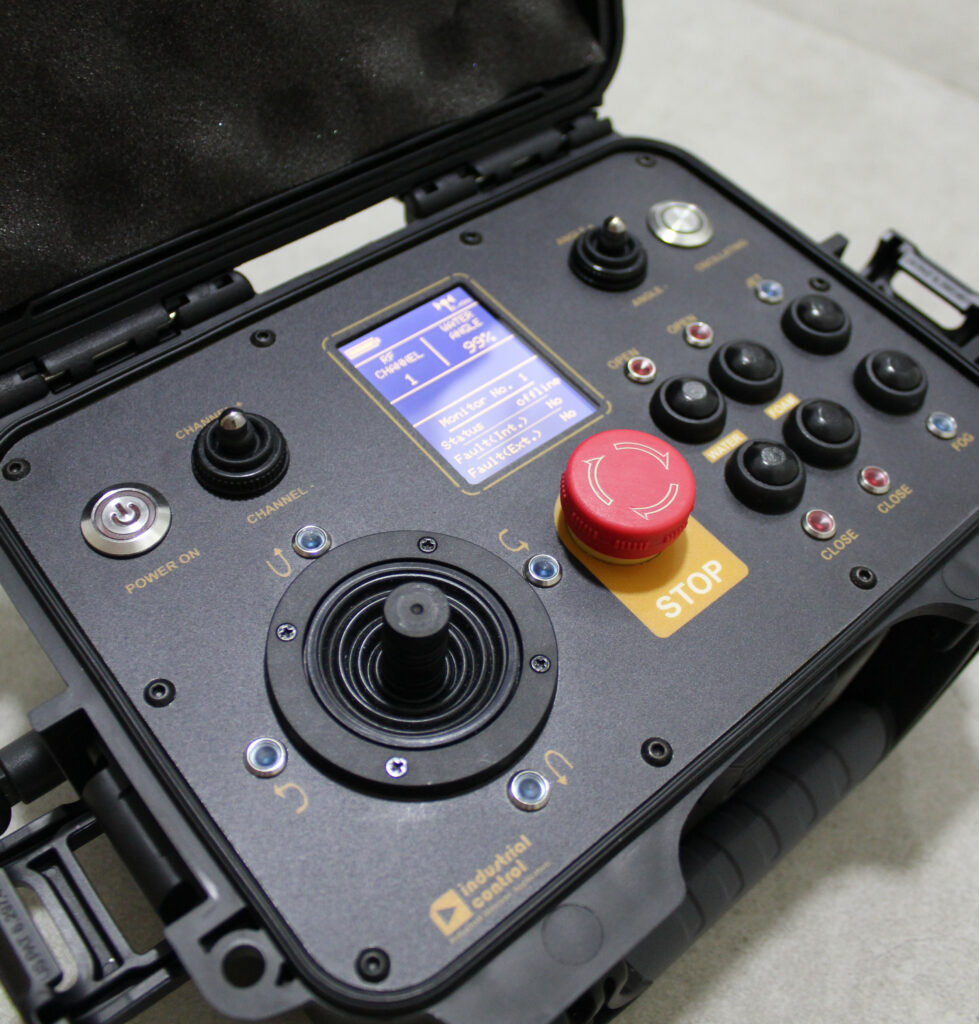

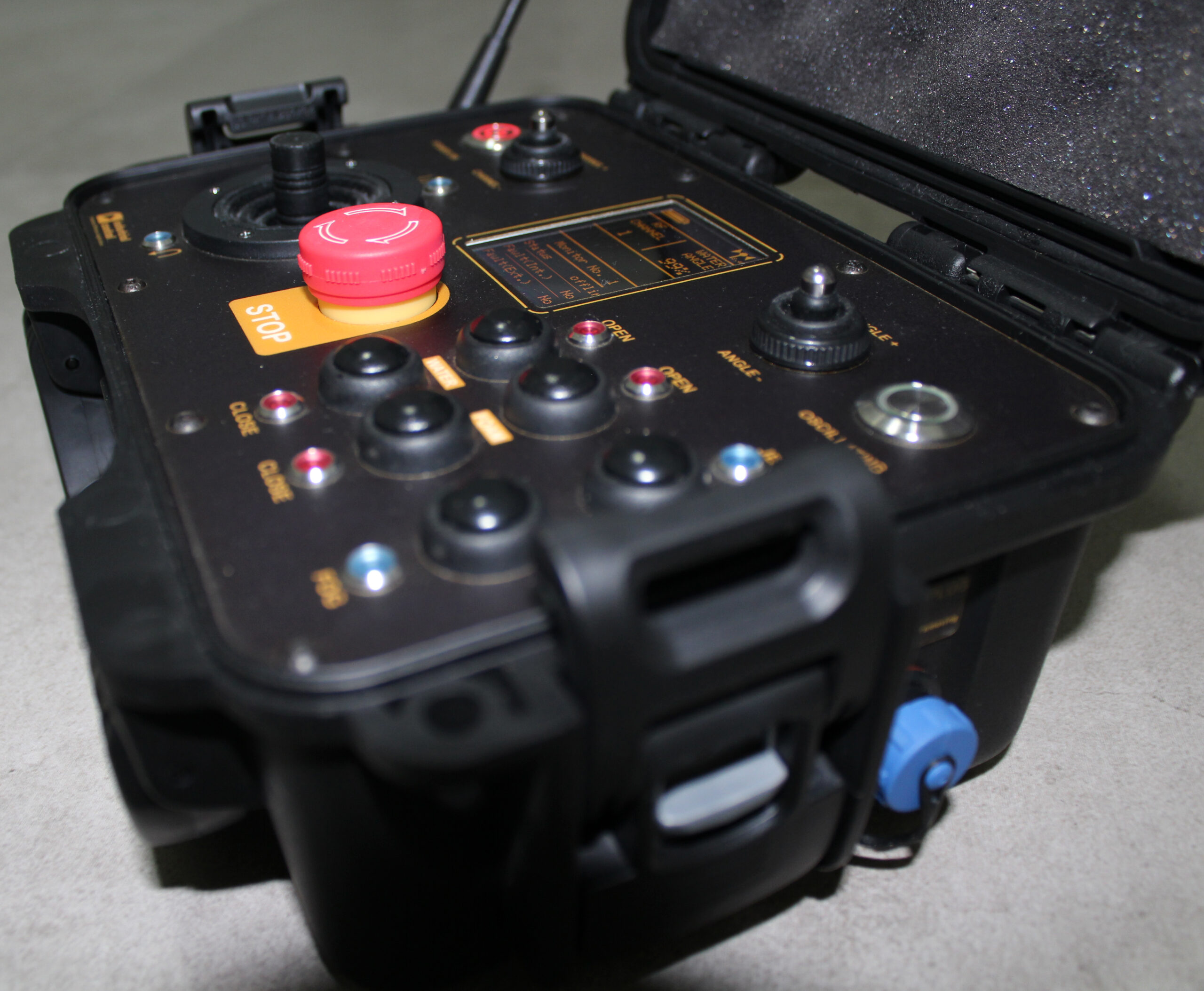

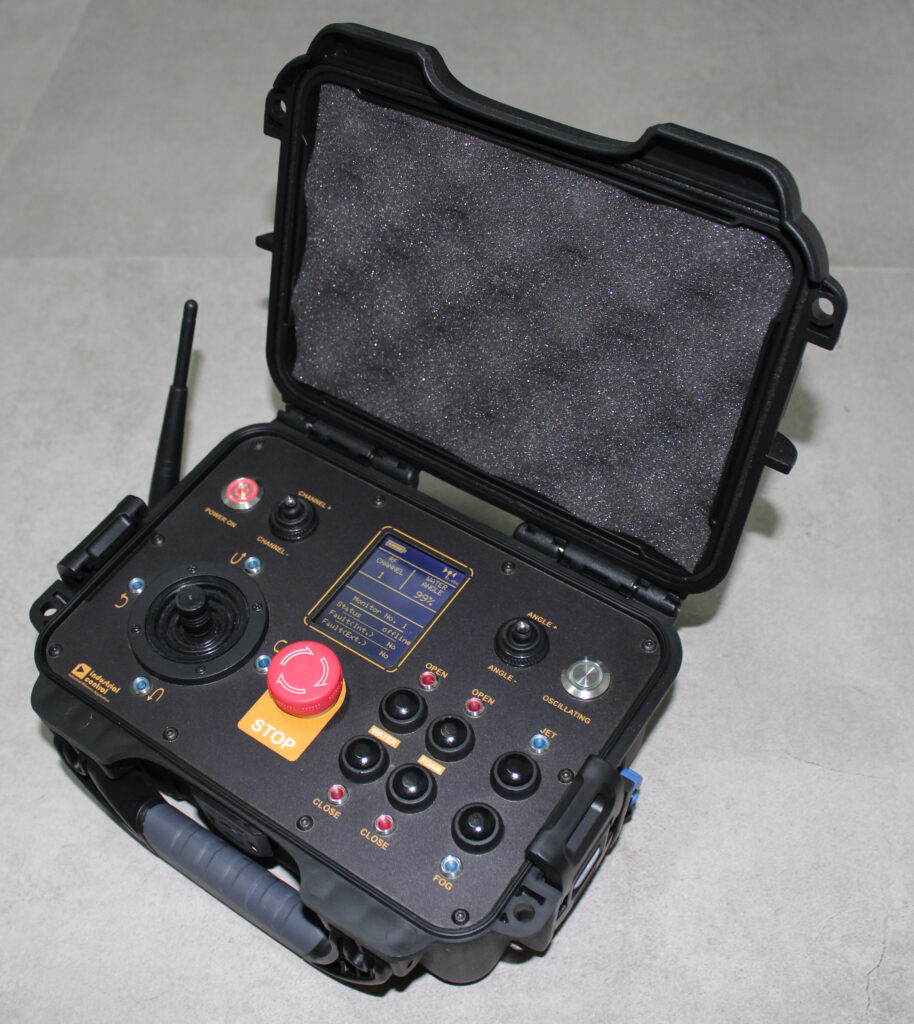

Description of Remote Controller
- Powe on Push Button
- Channel toggle switch for Select Monitor (if any)
- TFT LCD
- Push Button for Open/Close Water with related LED Indicator
- Push Button for Open/Close Foam with related LED Indicator
- Push Button for Fog/Jet Nozzel with related LED Indicator
- Joystic Controller Left/ Right or Up/Down with related LED indecator
- Emergency STOP
- Wireless Antenna (2.4gHz / 5dB)
- Oscilation Angle selection toggle switch Oscillating Push Button with related LED indecator
| Specification | |
| Wireless remote control size / protection | L:188mm W:124mm H: 97mm IP54(lid open) IP65(Lid close) |
| Frequency Band / receiver sensitivity | 2.4GHz / -98dBm |
| Area classification | Safe area |
| Operating Temperature | -10 to 60°C |
| Transmitter Power | li-polymer 7.4 Vdc battery |
| Reaction Time | < 0.1 Sec |
| Wireless remote control Battery life | Min 8 hours in continues operation |
| Wireless remote control LCD | Yes |
| Wireless remote control operation & indicator | Left / Right – Up / Down joystick Water actuator valve open/close Foam actuator valve open / close Oscillating mode pushbutton On/off switch FOG/JET |
| Distance | Visual distance 500 meter in open area with 5dB antenna |
| Wireless remote control accessories | Charger , 2.4Ghz antenna (5dB) & user manual |
